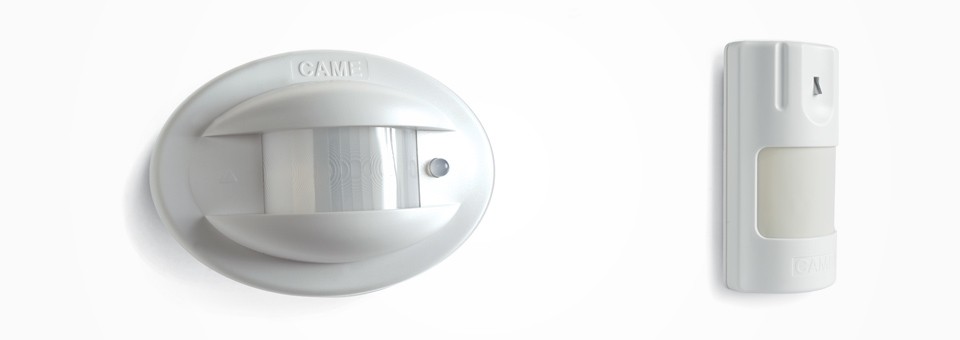

დეტექტორი სადენით

პასიური ინფრაწითელი ტექნოლოგია

• low power absorption დაბალი სიმძლავრის შთანთქვა

• რეგულირებადი მგძნობიარობა ოპტიმალური მოქმედებისათვის

• 15 მ დიაპაზონი და 141 ° გახსნა

• complete with joint

ორმაგი ტექნოლუგია

• dual element passive infrared pyroelectric sensor (PIR), and planar microwave sensor (MW)

• both detecting sections are adjustable

• ორი ფუნქცია:

1. the alarm status is signalled when both sections have an alarm active

2. the alarm status is signalled when one of the two sections is in alarm mode inside applications

• low power absorption

• 15 m  range and 141° opening

• complete with joint

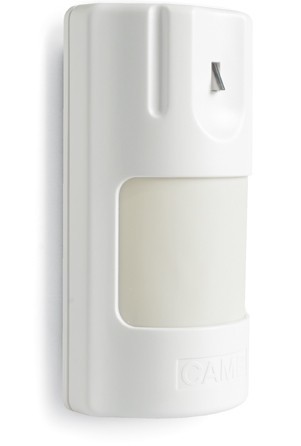

Passive infrared low absorption technology

• inside applications

• low power absorption

• 10 m range and 110° opening

• special circuit for temperature compensation

• number of detections before alarm signaling can be adjusted

• complete with joint

Low power absorption and passive infrared technology (pet immune)

• inside applications

• low power absorption

• immune to pets weighing less than 20 Kg

• 10 m range and 110° opening

• special circuit for temperature compensation

• number of detections before alarm signaling can be adjusted

• complete with joint

Dual technology (PIR + MW) with low absorption

All detectors are equipped with dual technology (passive infrared + microwave planar) and a special circuit for temperature compensation. To avoid false alarms, you can adjust the sensitivity of the microwave and the number of detections after whcih the alarm is triggered.

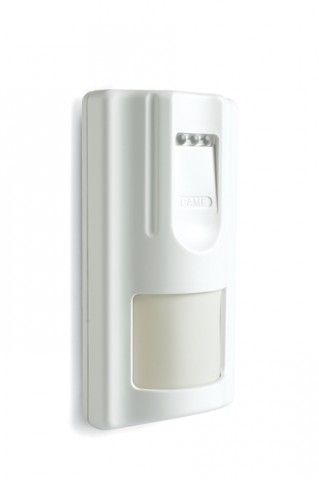

001SDT315:

• 15 m range and 110° opening

001SDT311PT:

• immune to pets weighing less than 20 Kg

• 11 m range and 110° opening

001SDT315AM:

• anti-masking function

• 15 m range and 110° opening

001SDT325:

• suitable to cover large areas thanks to its 25 m range and 83 ° opening

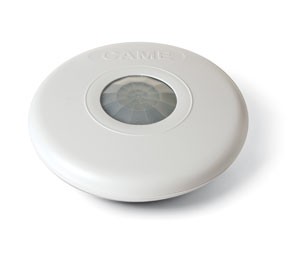

Indoor ceiling application

• passive infrared dual element pyroelectric sensor (PIR)

• low power absorption

• adjustable number of detections before the alarm is triggered

• with a special circuit for temperature compensation for maximum efficiency even at high temperatures

Coverage:

• installed at a height of 4m with a diameter on the ground of 13 m

• installed at 6.8 m in height with a diameter on the ground of 17 m

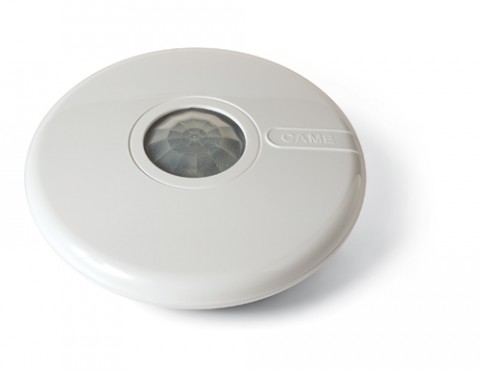

Double technology detector

• passive infrared (PIR) and microwave (MW) dual element pyroelectric sensor with patch antenna

• low power absorption

• can adjust the sensitivity of the microwave and the number of detections after which the alarm is triggered

Coverage:

• installed at 2.8 m height with a diameter on the ground of 8 m

• installed at 4.5 m height with a diameter on the ground of 13 m

Indoor ceiling or wall application

• passive infrared dual element pyroelectric sensor (PIR)

• curtain coverage effect

• detects vibrations after which the alarm is triggered

• fitted with a special temperature compensation circuit

• 8 m range and 90° opening

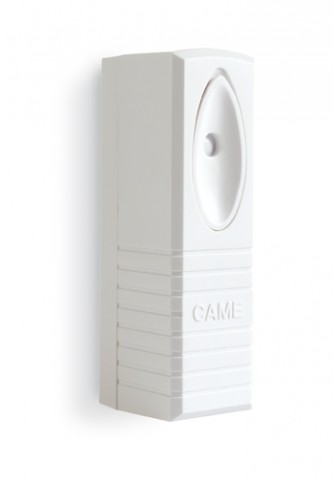

Vibration detector

• installed to protect doors and windows

• detects vibrations resulting from impacts and attempts at breaking and entering

• possibility of adjusting trip sensitivity
